特徴

仕様

Condition: New

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Cryogenic industry

Max Working Pressure(MPa): 0.1 MPa

Capacity: 100 L

Dimension(L*W*H): can customzied

Weight: 24-650kg

Warranty: 1 Year

Key Selling Points: High Productivity

Showroom Location: None

Product name: YDZ-100 liquid nitrogen containers

Material: Stainless Steel Carbon Steel

Application: Chemcial Storage

Usage: Store, Ship

Volume: 15-1000L

Type: Customerized

Working pressure: 0.1MPa

Infusion volume: â‰¥8L/Min

Feature: Security Duarble Portable

Function: Widely Used

After-sales Service Provided: Online support

After Warranty Service: Online support

Local ServiceÂ Location: None

証明: ISO9001

基本情報

証明: ISO9001

お支払配送条件

Packaging Details: 1.plastic bubbles 2.polystyrene foam sheet 3.carton

Supply Ability: 100 Piece/Pieces per Month

製品の説明

Products Description

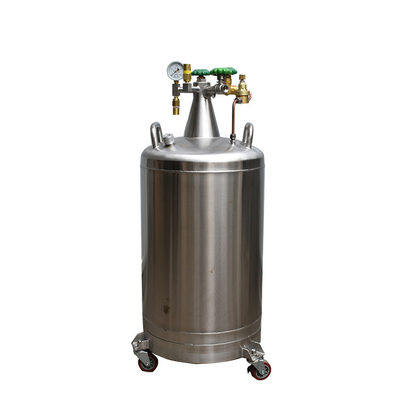

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

The self-pressurized liquid nitrogen tank gasify a small amount of liquid nitrogen to increase the pressure in the liquid nitrogen tank, thereby discharging the liquid in the liquid nitrogen tank. It is safe to use, with continuous pressurization, uninterrupted drainage, convenient movement, simple operation and long-term durability. Widely used in abrasive industry, animal husbandry, semiconductor, food industry, low temperature industry, aerospace, military, etc.

Product Paramenters

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

Product number	Geometric volume （L）	Effective volume（L）	Out Diameter （mm）	High (mm)	Empty Weight (KG)	Full weight (KG)	Working pressure (Mpa)	Daily evaporation rate(%)	Infusion volume (L/Min)
YDZ-15	16.5	15	350	600	22	34	≤0.1	12.7	≥2
YDZ-30	31.5	30	455	750	35	59	≤0.1	2.7	≥2
YDZ-50	55	50	455	1000	45	90	≤0.1	1.8	≥4
YDZ-100	110	100	505	1270	68	148	≤0.1	1.3	≥6
YDZ-150	165	150	555	1450	100	220	≤0.1	1.2	≥8
YDZ-175	185	175	555	1600	120	260	≤0.1	1.1	≥8
YDZ-200	220	200	600	1600	125	285	≤0.1	1.1	≥8
YDZ-300	330	300	800	1600	300	432	≤0.1	1.0	≥10
YDZ-500	550	500	1000	1750	335	739	≤0.1	1.1	≥12
YDZ-800	880	800	1300	1830	520	1160	≤0.1	1.0	≥15
YDZ-950	1045	950	1400	1850	650	1418	≤0.1	1.0	≥20
YDZ-100W	110	100			95	175	≤0.1	2.0
YDZ-200W	220	200	1500*600	825	160	320	≤0.1	1.7	≥8
YDZ-320W	330	320	1800*910	1120	225	483	≤0.1	1.5	≥8
YDZ-500W	550	500	2000*1010	1250	350	754	≤0.1	1.8	≥10
YDZ-950W	1045	950	2000*1600	1750	715	1483

Product Structure

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

The self-pressurized liquid nitrogen tank is made of high-quality stainless steel, and the container is equipped with a
pressure-increasing system, which can generate pressure and continuously discharge liquid.

Part picture of liquid nitrogen container

The control system of the container is mainly composed of: liquid valve; booster valve or pressure building valve; vent valve, safety valve; liquid level gauge; pressure gauge; independent braked casters.

Details Images

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

Instructions

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

Inlet Liquid: When filling liquid from the inlet / drain valve and filling the container, please first open the vent valve, connect the infusion metal hose to the inlet / drain valve, open the inlet / drain valve, then you can start from The liquid medium is added to the inlet / drain valve. After the liquid is filled, the inlet / drain valve is closed. Liquid level indication: By observing the yellow indicator ring in the transparent display, you can directly read the change of the liquid level Storage: When you use this container to store liquid medium, please close the inlet / drain valve and pressurization valve, you must open the vent valve Transportation: When you use this container to transport liquid medium, the opening and closing state of each valve should be the same as that during storage, and please fix the wheels under the container seat ring, and use the rope to fix the container to the car reliably. Drain Liquid: Close the vent valve, open the booster valve, observe the pressure gauge, and when the pressure rises to 0.05MPa (0.5kg / cm2), open the drainage valve to allow continuous infusion.

Safety Duarble YDZ-100 Portable Cryogenic Tank 100 Liter Large Capacity Liquid Nitrogen Containers

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

Part picture of liquid nitrogen container
